Trimble T70 Tablet

GNSS. Robotic. Onboard. One Tablet Does It All.

Request Demo or Quote Learn about Equipment Financing

The Lightest Way to Run Every Workflow on the Job Site

A compact Android controller built for the modern surveyor and construction professional. Move seamlessly between GNSS, robotic total stations, onboard total station control, and machine guidance, all from one device.

1 6

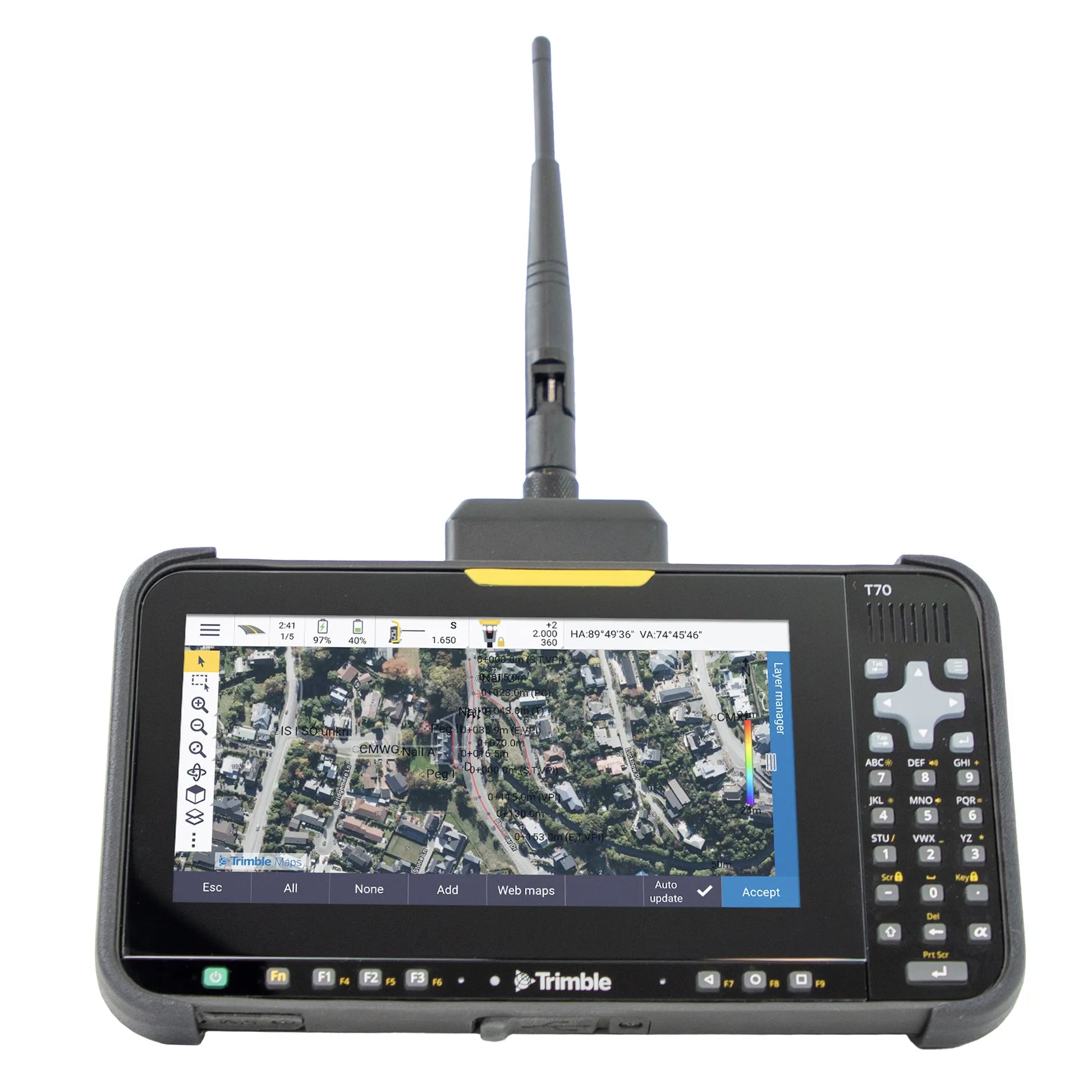

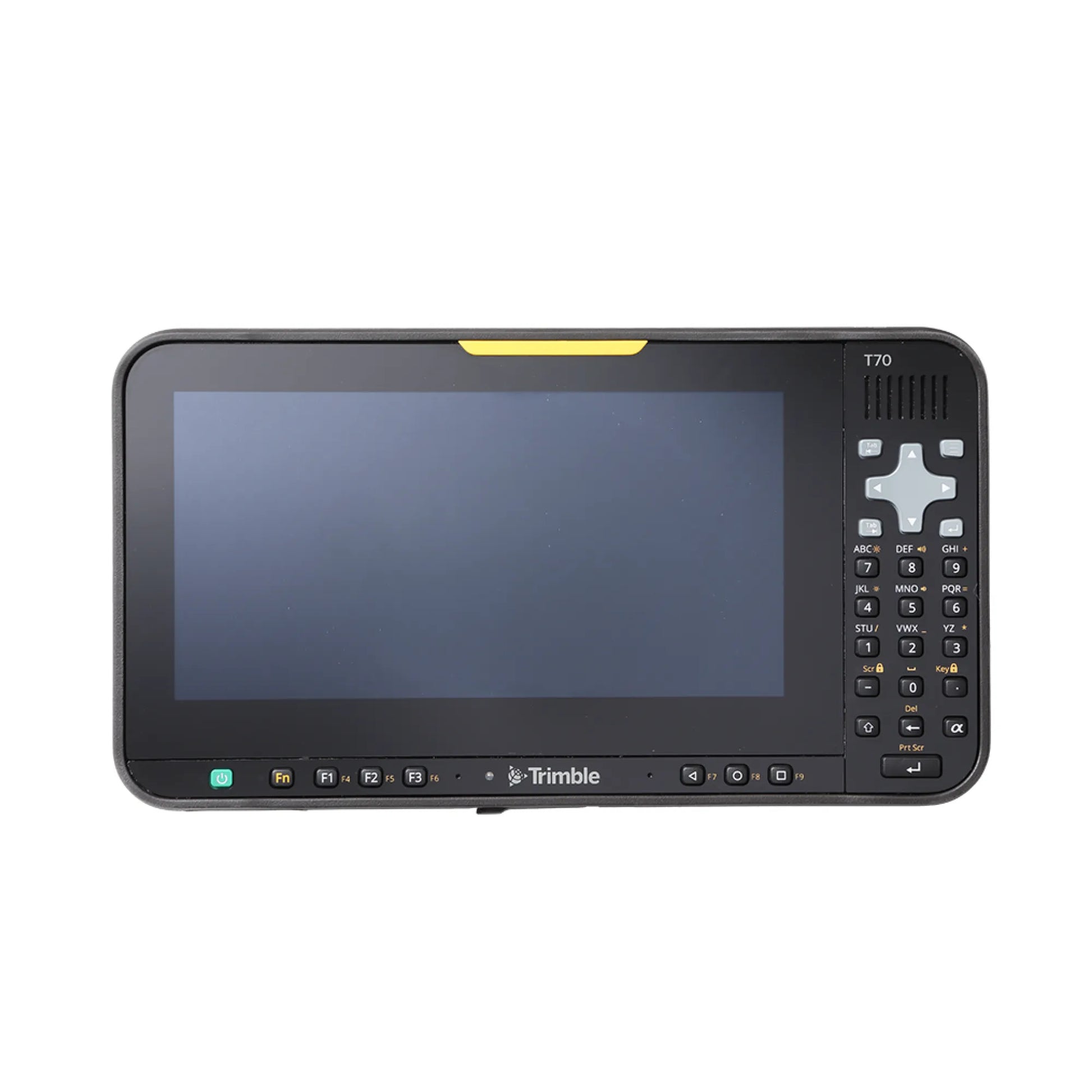

Trimble T70 Tablet

Move seamlessly between GNSS, robotic total stations, and onboard total station control with the Trimble T70 tablet. Its compact Android platform and all-day battery deliver a smooth field experience for demanding survey and construction applications.

Versatile Performance

Qualcomm QCS6490 processor with 8 GB memory and 128 GB storage
Android 15 operating system, Google Mobile Services certified for Google Play compatibility
Seamless transitions between GNSS, robotic total station, autolock, and onboard S-Series workflows without leaving the job file

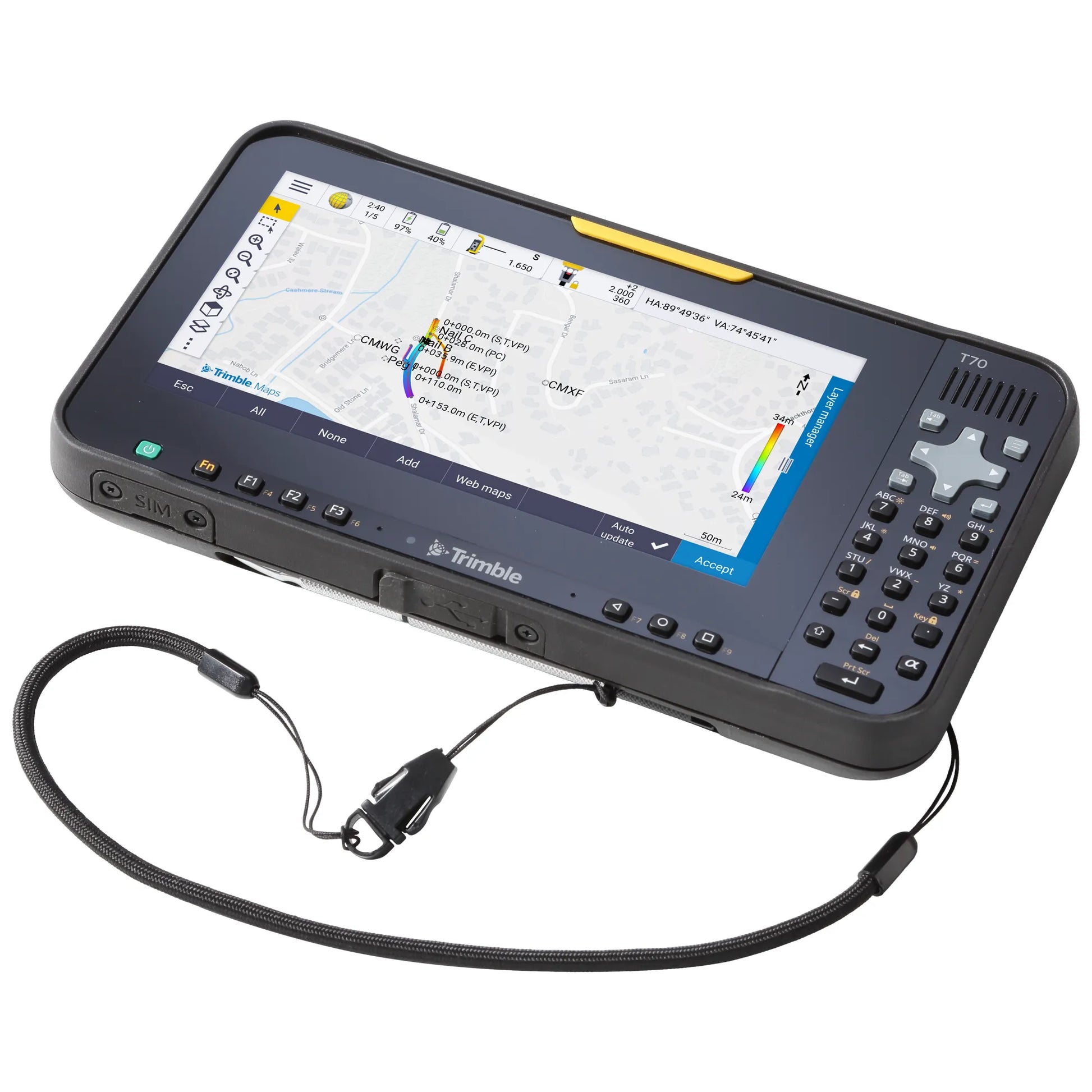

6-inch sunlight-readable display (2160 x 1080, 900 cd/m²) with multi-touch support for stylus, finger, or glove use

Connected & Efficient

Integrated 4G LTE WWAN, Wi-Fi 6, Bluetooth 5.2, and NFC
One Empower radio bay for instant robotic total station connectivity
Trimble Connect and WorksManager keep office and field data in sync in real time
Android Quick Share for fast local file transfers

Built to Last

1.68 lbs (760 g), the lightest controller in the Trimble portfolio

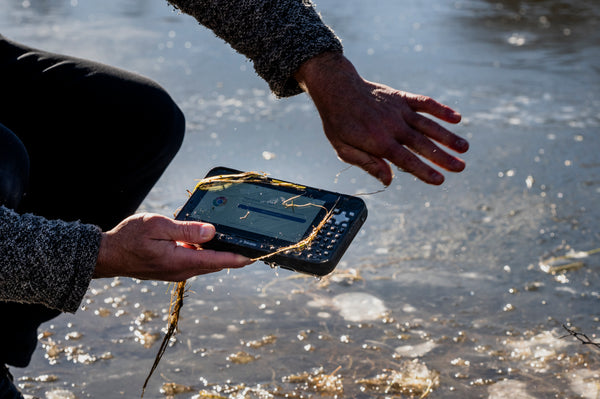

IP68 rated, and MIL-STD-810H tested for dust, water immersion, and drops
12 to 14 hours of continuous battery life on GNSS RTK or robotic total station use
32-key backlit alphanumeric keypad with programmable function keys

View full details

Made for the Field, Whatever Your Job Is

Geospatial & Surveying Professionals
- Role: Topographic mapping and precise layouts

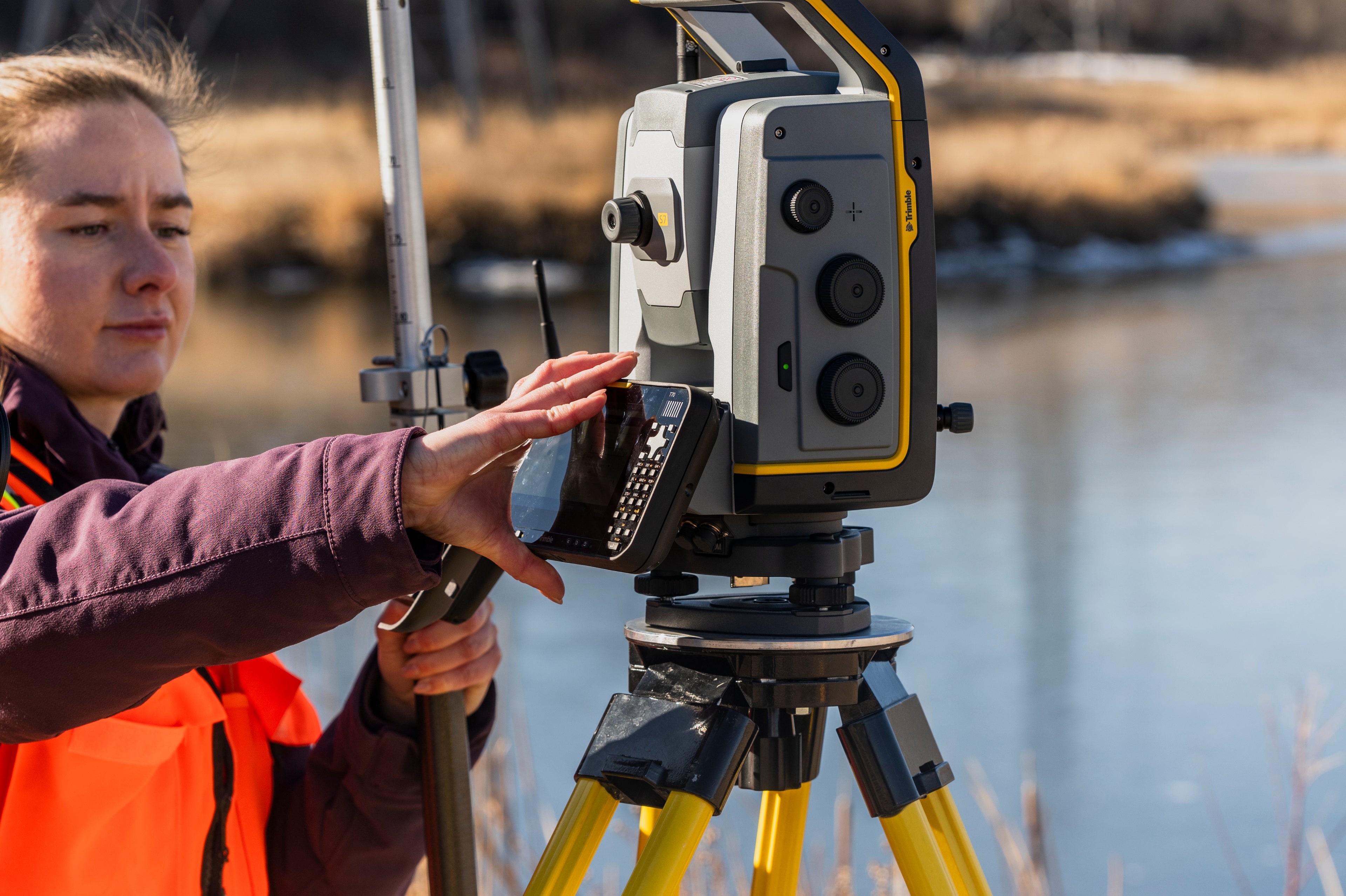

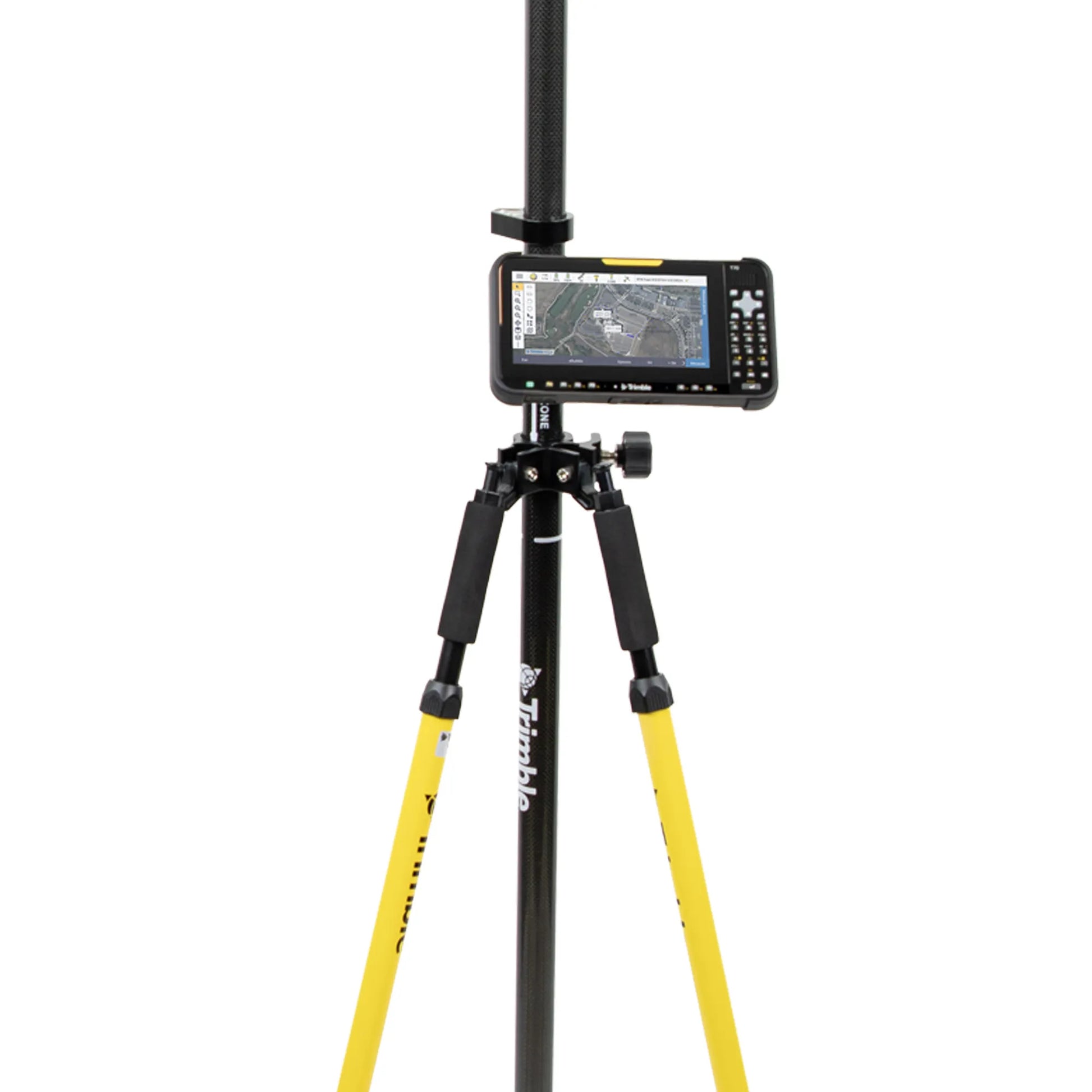

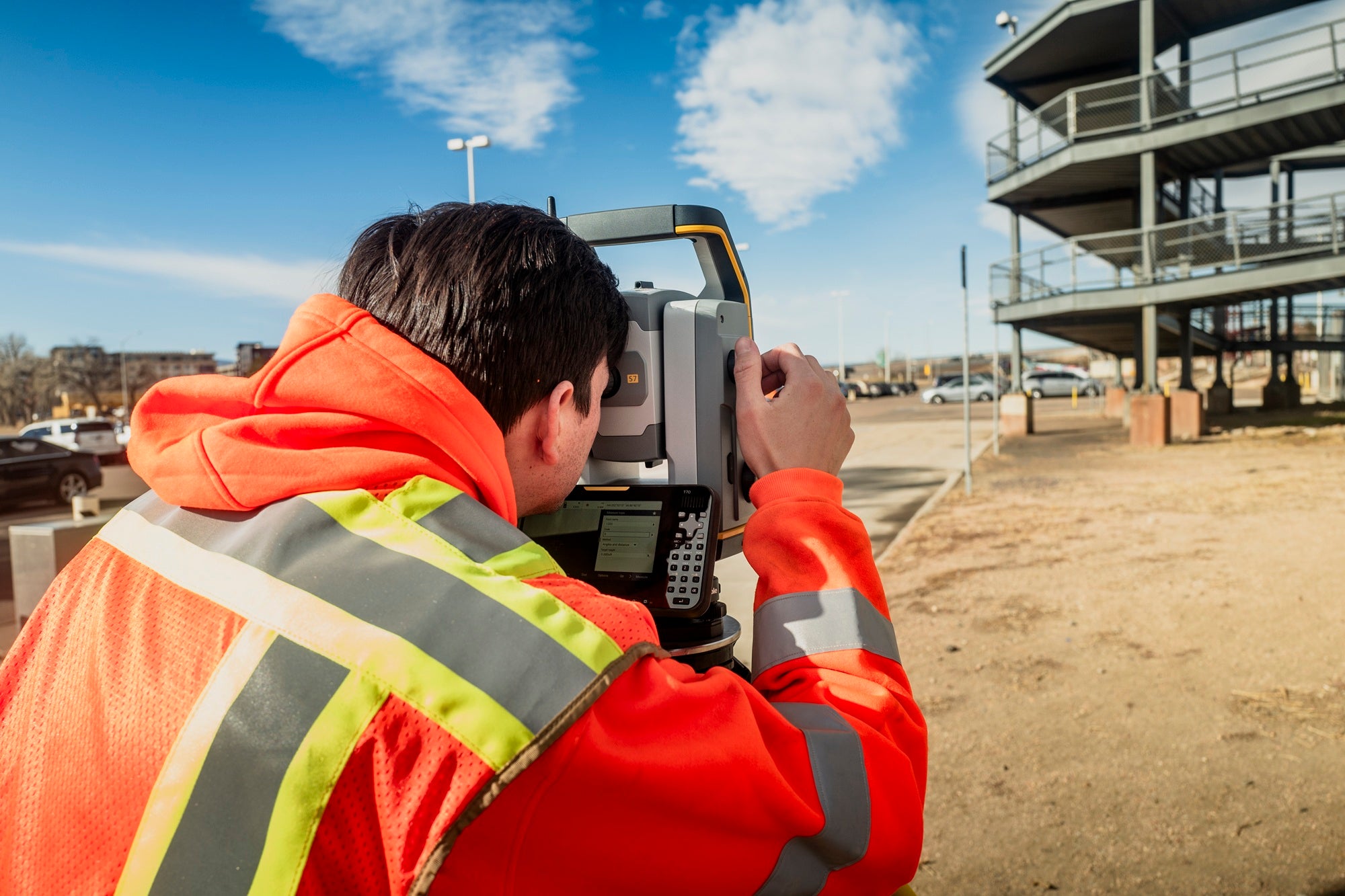

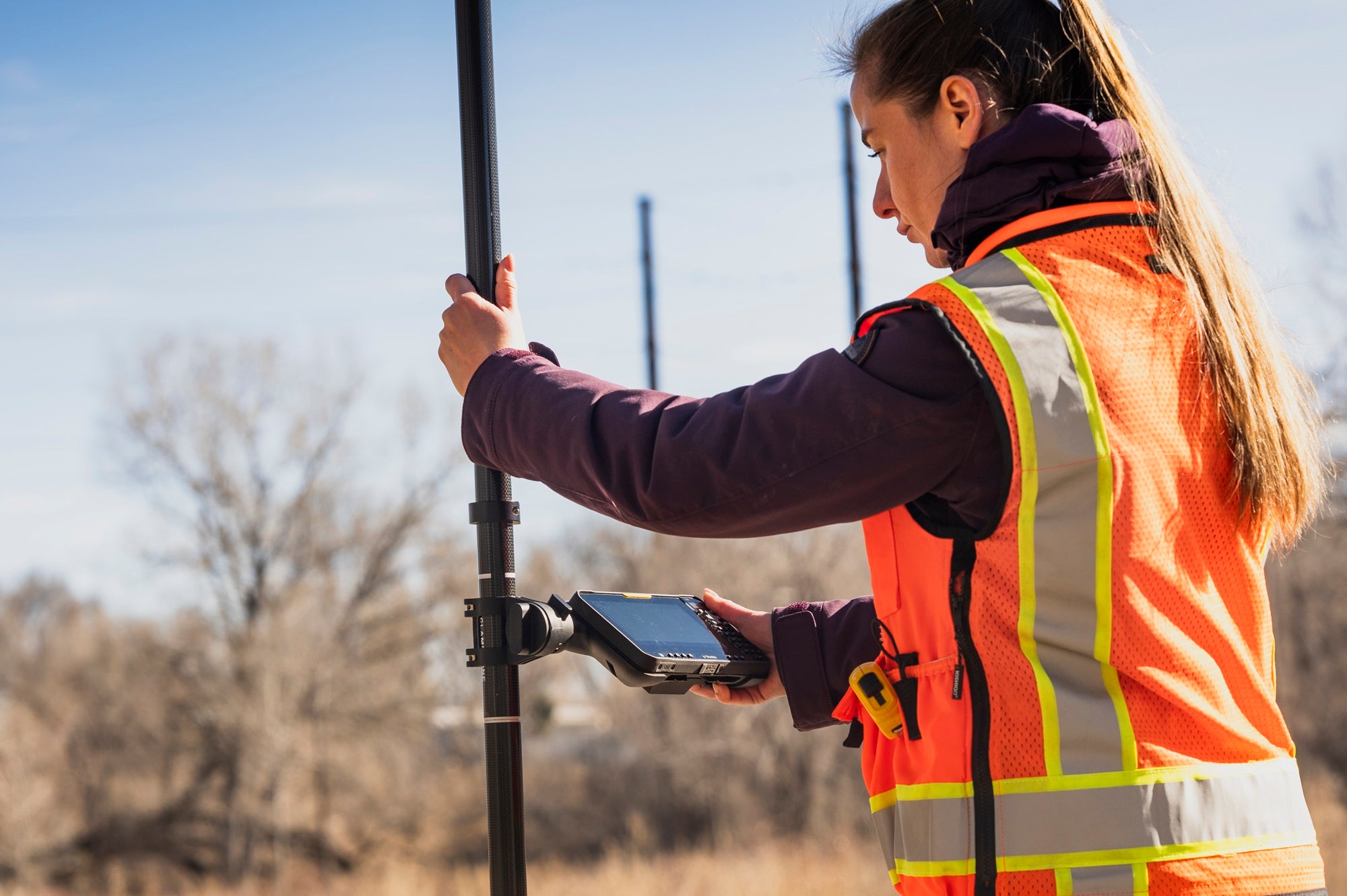

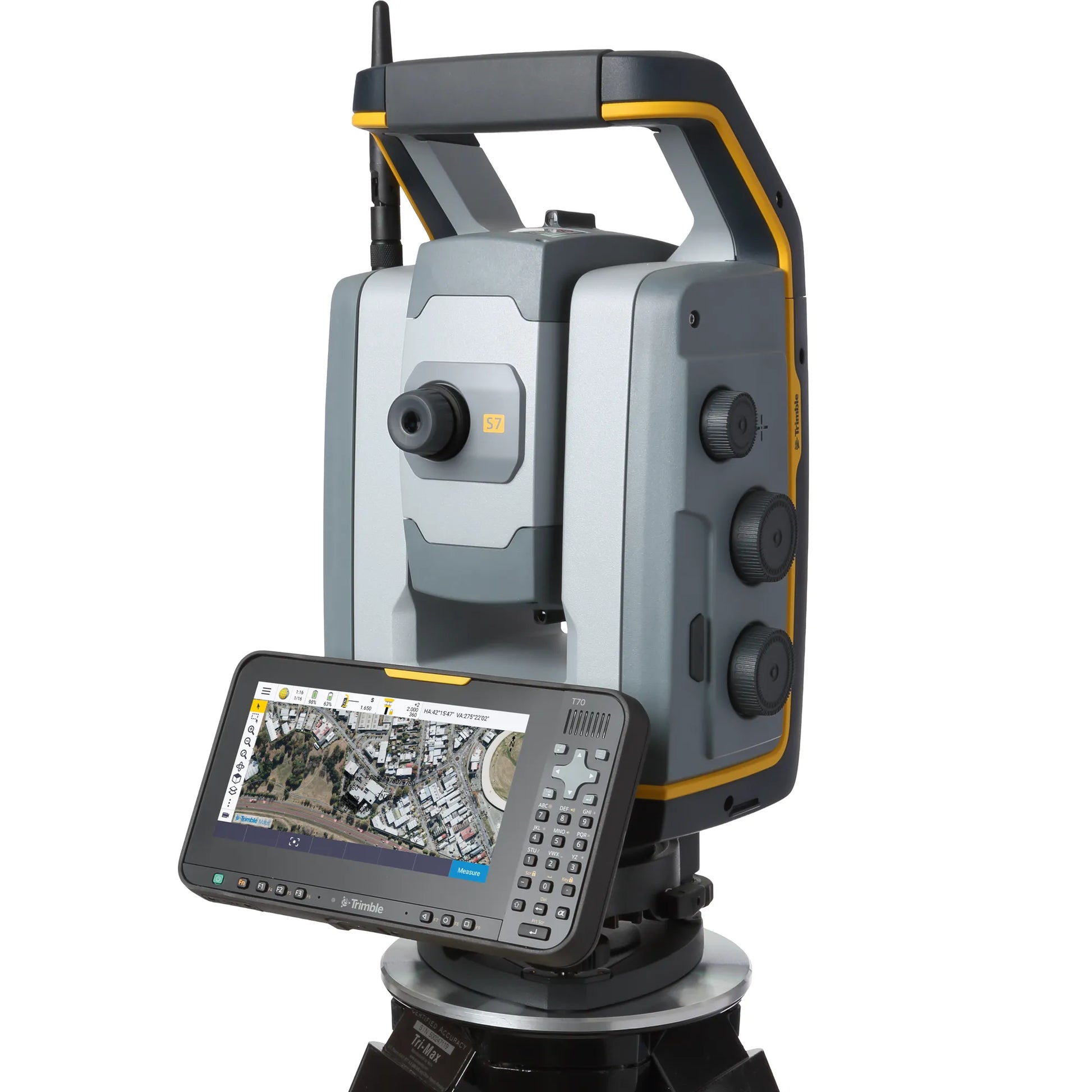

- T70 advantage: Works as a GNSS rover controller, clips onboard an S-Series total station, or runs robotically with an Empower module
Civil Construction Site Supervisors
- Role: On-the-move data validation (checking grades, tracking volumes, monitoring schedules)
- T70 advantage: Mounts easily inside a truck cab or on heavy machinery for Trimble Siteworks machine guidance

Built for Field Professionals

Designed for surveyors and construction professionals who need one controller that adapts to the task at hand. The T70 replaces both the Trimble T7 and TCU5, integrating with Trimble Access, Trimble Siteworks, Trimble TerraFlex, and Trimble Mobile Manager for real-time insight from the field to the office. Rated IP68 and built to MIL-STD-810H, it shrugs off dust, water immersion, and drops onto plywood from 1.22 meters, and keeps running in temperatures from -20°C to +60°C (-4°F to 140°F).
