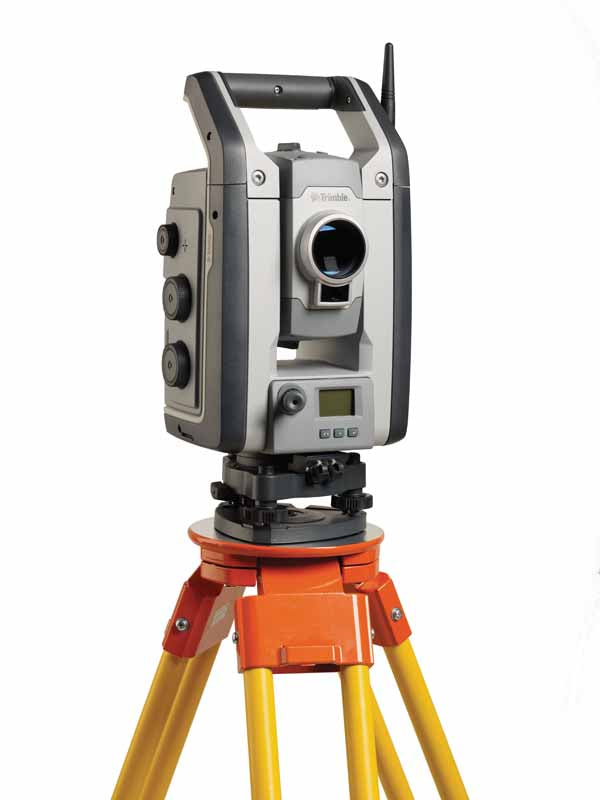

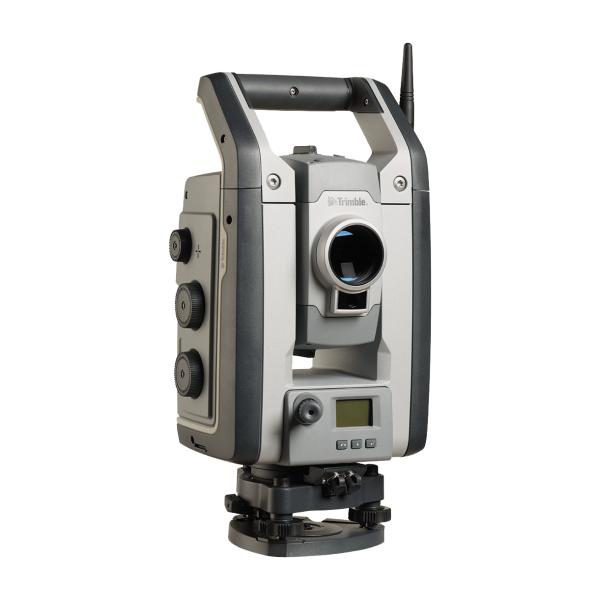

Trimble S9 Robotic DR Plus Total Station

Trimble S9 Robotic DR Plus Total Station

0.5" or 1" Angular Accuracy
DR PLUS EDM Technology
1.0 mm + 2 ppm (Prism) / 2.0 mm + 2 ppm (DR) EDM Accuracy

The Trimble S9 DR Plus is built for specialized engineering applications such as monitoring and tunneling, where you need optimal speed, accuracy, and reliability. The DR Plus EDM provides extended range Direct Reflex measurement without a prism, paired with your choice of 0.5" or 1" angle accuracy.

  • Available 0.5" or 1" angle accuracy
  • Trimble DR Plus EDM for extended range measurement without a prism
  • Trimble FineLock technology, which detects targets without interference from surrounding prisms for high precision applications in close quarters
  • Optional Trimble VISION and SureScan™ technology, available on select configurations
  • Trimble Sentinel real-time equipment management, with alerts if the instrument leaves a job site or experiences unexpected shock (functionality and availability dependent on region)
  • Intuitive Trimble Access field software and Trimble Business Center office software for quick data processing
  • Trimble 4D Control for monitoring management

Performance

The S9 DR Plus comes in several configurations, with optional VISION, SureScan, Long Range FineLock, and Tracklight depending on the model. Not every option is available on every configuration, so contact us to match the instrument to your project.

For applications where precision is the priority, see the Trimble S9 DR HP, which uses the DR HP EDM for higher accuracy when measuring to prisms.

Field and Office Solutions

Choose from a variety of Trimble controllers running Trimble Access field software, including specialized modules such as Tunnels, Monitoring, Pipelines, and Mines that provide dedicated workflows to help you get the job done faster. Trimble Access workflows can also be customized to fit your needs.

Back in the office, use Trimble Business Center to check, process, and adjust your data in one software solution. Trimble 4D Control office software manages monitoring projects, both real-time and post-processed, so critical structural movements can be detected quickly.

Field Specifications

  • Dust and water proofing: IP65
  • Operating temperature: -20 °C to +50 °C (-4 °F to +122 °F)
  • Operating time: approx. 6.5 hours on one internal battery
  • Prism mode range: 2,500 m (8,202 ft) on one prism, 5,500 m (18,044 ft) in 1 prism Long Range mode (max. range)
  • DR mode range: 1,300 m (4,265 ft) on a white card (90% reflective) in normal conditions
  • Scanning range (SureScan models): 1 m up to 250 m (3.28 ft to 820 ft), up to 15 points per second, varies with target, atmospheric conditions, and scanning angle
