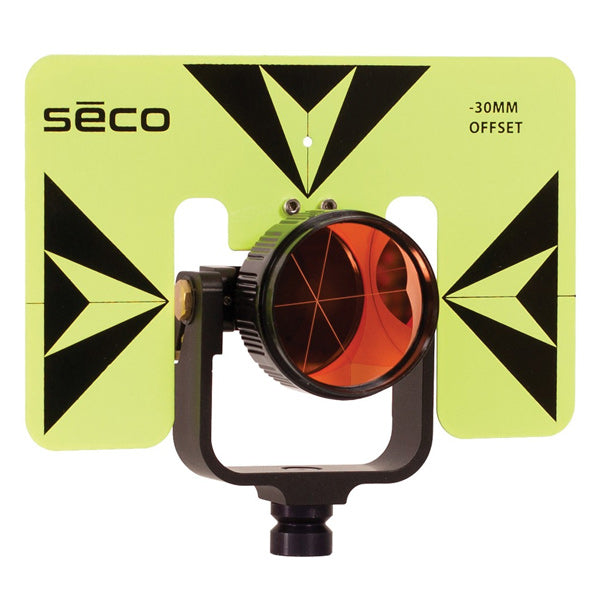

SECO 30/0 mm Premier Prism Assembly with 6 x 9 Inch Target PN 6402-06-FLB

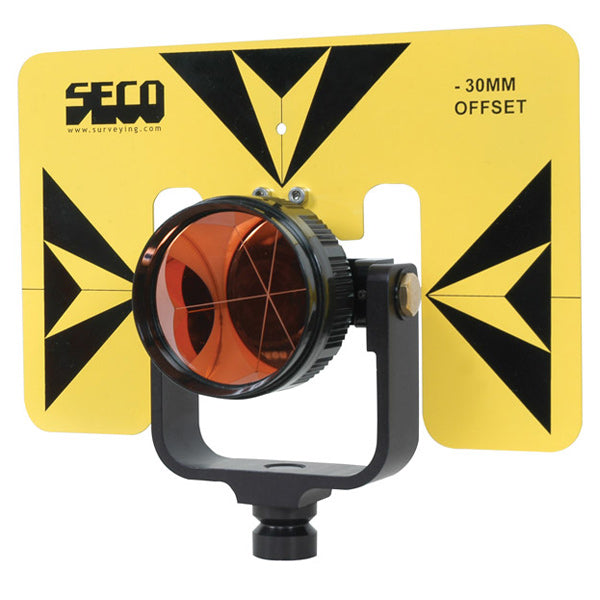

SECO 30/0 mm Premier Prism Assembly with 6 x 9 Inch Target PN 6402-06-YLB

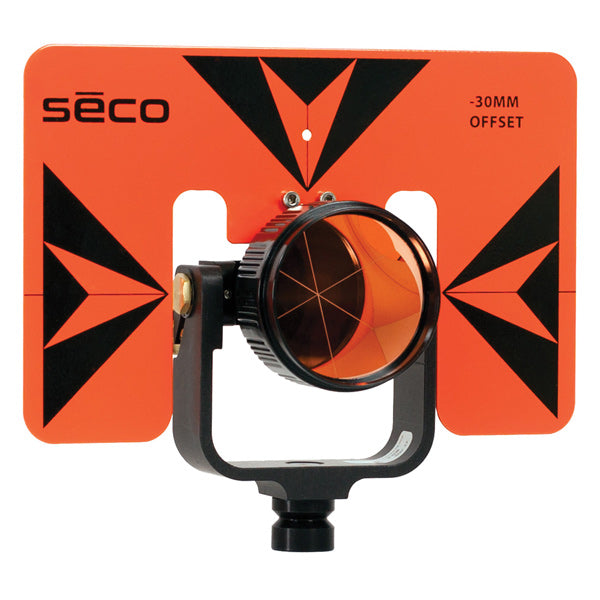

SECO 30/0 mm Premier Prism Assembly with 6 x 9 Inch Target PN 6402-06-FOB

Seco Manufacturing

SECO 30/0 mm Premier Prism Assembly with 6 x 9 Inch Target

$266.47

( / )
Unavailable

Please select all options.
Part Number: 6402-06
  • The -30/0 mm offsets enable the Premier Prism Assembly to be used with Nikon, Topcon, Sokkia and other total stations
  • The 62 mm copper-coated prism is encased in a heavy-duty canister with M20 threads
  • Features a prism accuracy of <5 seconds
  • Tilting holder is constructed of anodized aluminum
  • Height of the prism in the holder is 100 mm and -30/0 mm offsets
  • The mounting base features standard female 5/8 x 11 threads
  • Target size 6 x 9 inches (15.2 x 22.8 cm)
