Part Number: 6200-11-FOR SECO 25mm Mini Prism System with Side Vial, Flo Orange
Part Number: 6200-11-FOR SECO 25mm Mini Prism System with Side Vial, Flo Orange

Seco Manufacturing

SECO 25mm Mini Prism System with Side Vial, Flo Orange

$169.04

( / )
Unavailable

Please select all options.

Part Number: 6200-11-FOR

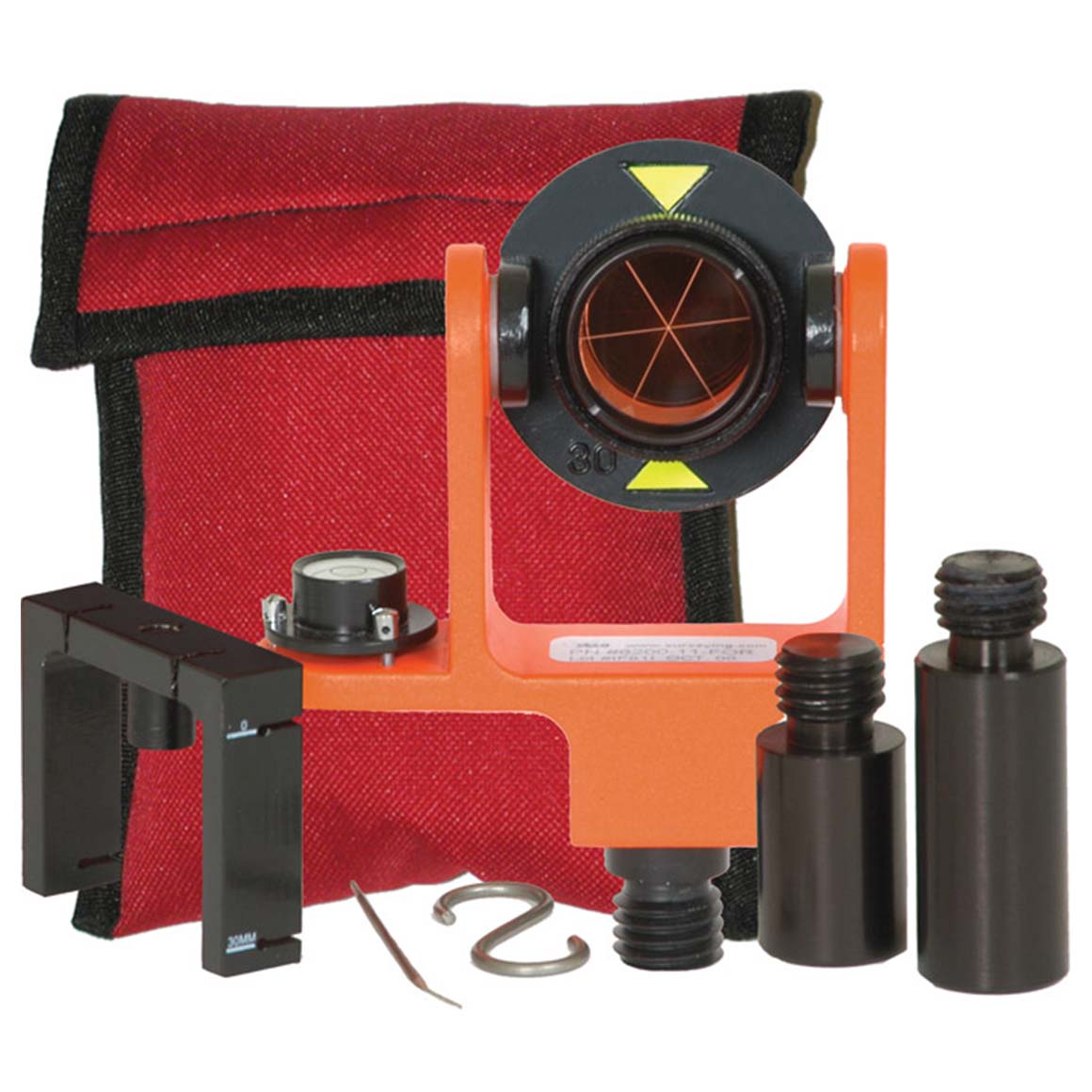

This versatile prism system packs a big punch in a small package

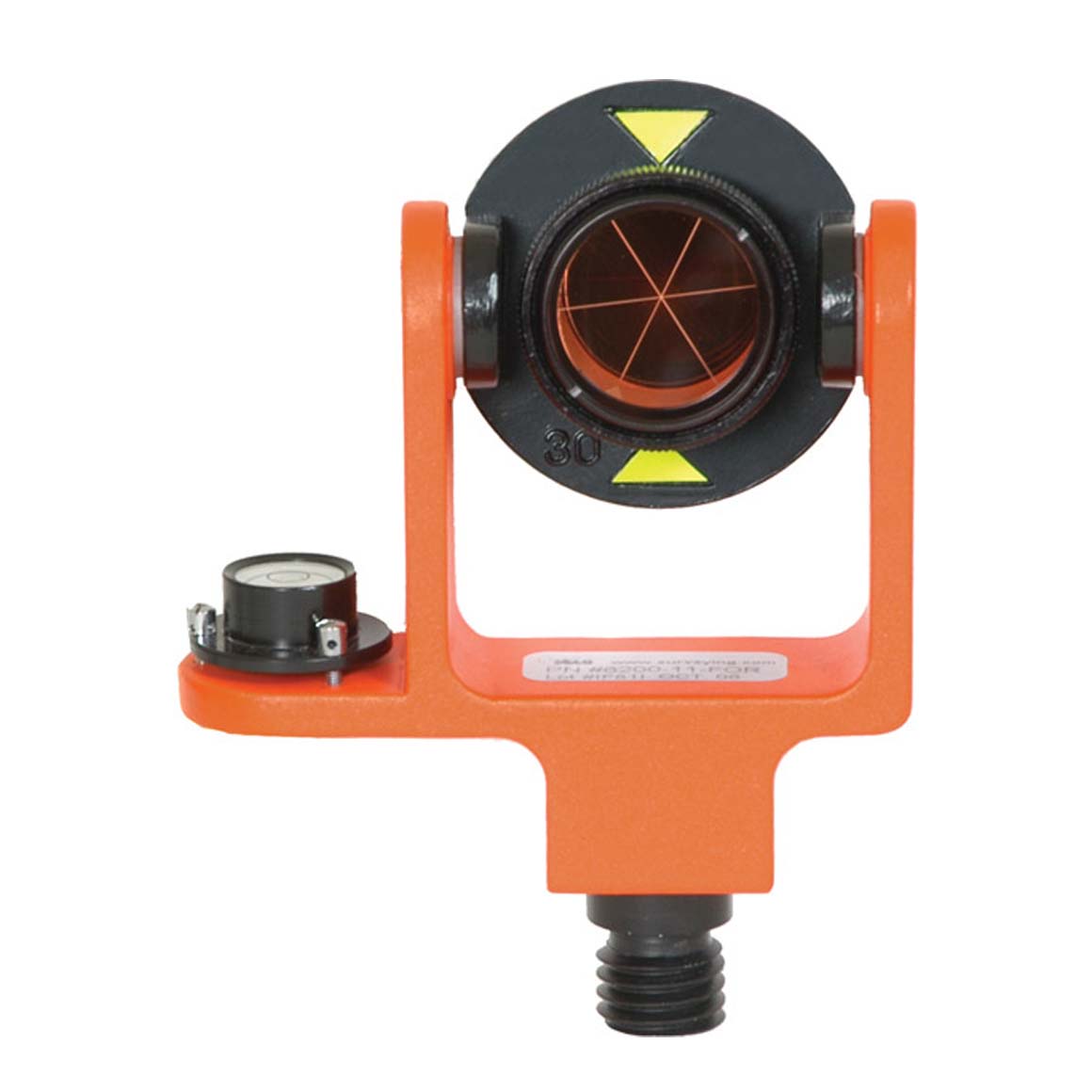

  • The assembly features a 25 mm copper-coated prism, for fog prevention, a tilting holder, with friction axis, zero or -30 mm offset
  • Powder painted Fluorescent Orange with Fluorescent Yellow targets
  • Includes a 40-min adjustable circular side-mounted vial
  • Assembly can be mounted on a Prism pole or tribrach at three heights: 70 mm, 100 mm, 115 mm, or can be hand-held using the plumb bob bracket or with S-hook for quick attachment to plumb bob
  • A point for stake-out work (not shown) and a system bag with a belt loop are included
